SZ Viewer: read DTC for Suzuki
SZ Viewer: read DTC for Suzuki
A1-2024-08-26
2.1 MB
Android 4.0+
May 04,2025
4.7

Application Description

For Suzuki vehicle owners looking to diagnose and manage Diagnostic Trouble Codes (DTCs), the SZ Viewer A1 application is a valuable tool. Designed specifically for Suzuki vehicles, this software utilizes both unique protocols through the K-Line and CAN bus, as well as standard OBDII protocols, to interact with the vehicle's control modules. With SZ Viewer A1, you can effortlessly read and reset DTCs, including extended and historical codes, across a wide range of Suzuki control modules.

Importantly, the SZ Viewer A1 extends its support to Japanese Domestic Market (JDM) Suzuki vehicles, which may not comply with standard OBDII protocols, ensuring comprehensive coverage for Suzuki enthusiasts worldwide.

To utilize this powerful diagnostic tool, you'll need an ELM327 adapter equipped with Bluetooth or Wi-Fi capabilities, specifically version 1.3 or a later model. Be cautious, as counterfeit ELM327 adapters labeled as v2.1, and certain v1.5 models, are incompatible due to their inability to support the necessary ELM327 commands.

It's worth noting that the SZ Viewer A1 does not support the older SDL protocol used in Suzuki vehicles prior to the 2000 model year, due to the physical incompatibility with the ELM327 adapter at the 5V level on pin #9 of the OBDII connector.

The application provides the functionality to view and reset DTCs across various control modules in your Suzuki vehicle, including but not limited to: powertrain, engine, automatic transmission/continuously variable transmission (AT/CVT), anti-lock braking system/electronic stability program (ABS/ESP), supplemental restraint system (SRS), air conditioning/heating, ventilation, and air conditioning (AC/HVAC), body control module (BCM), power steering (PS), electronic management control device/four-wheel drive/auto hill descent (EMCD/4WD/AHL), and tire pressure monitoring system (TPMS). However, the availability of these modules can vary depending on the vehicle model and year.

When diagnosing HVAC systems, you may encounter DTCs such as B1504 or B150A. These codes could appear due to low illumination levels of the sunload sensor during the diagnostic process and do not necessarily indicate a malfunction of the sensor itself.

Screenshot

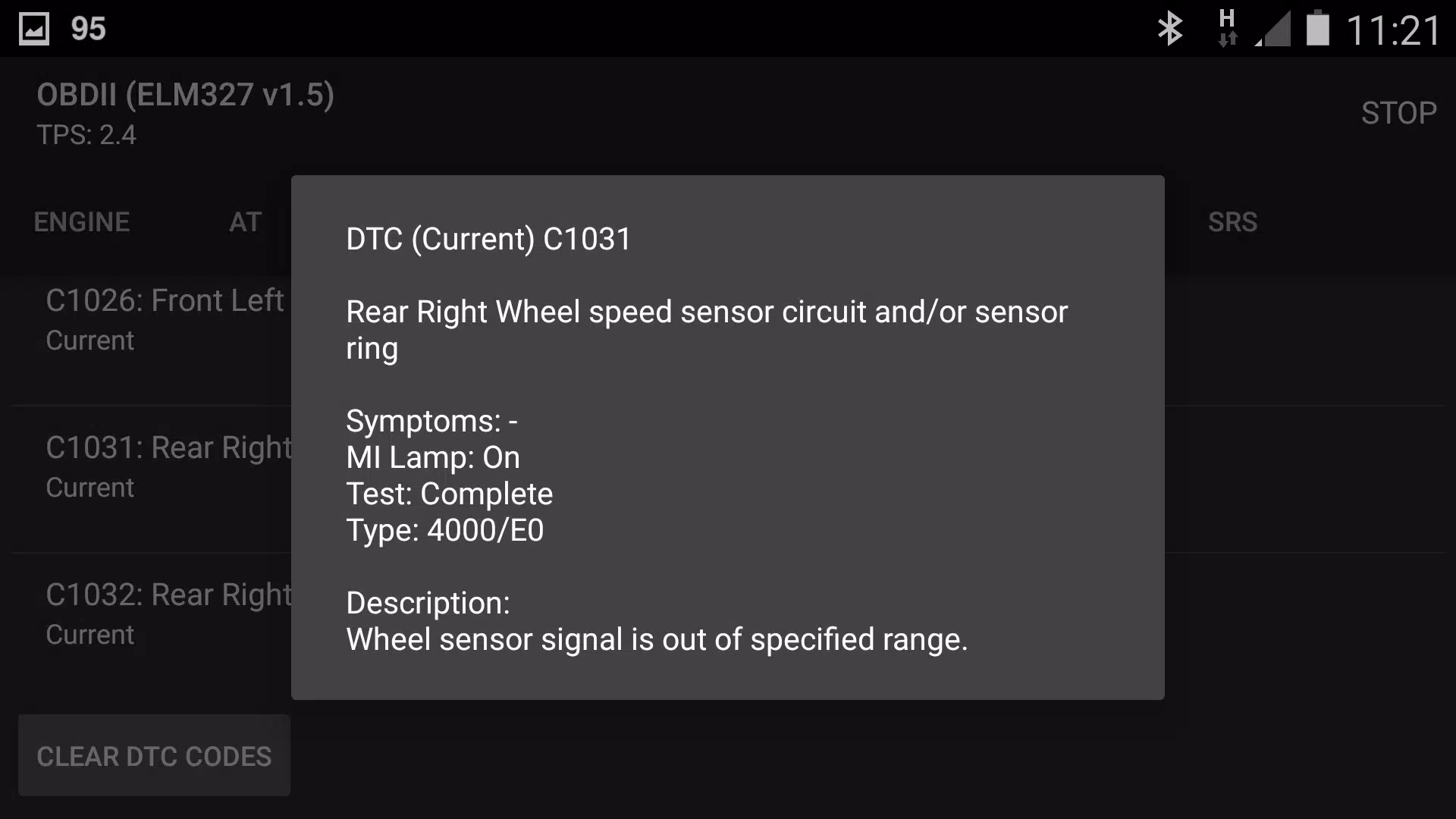

  • SZ Viewer: read DTC for Suzuki Screenshot 0

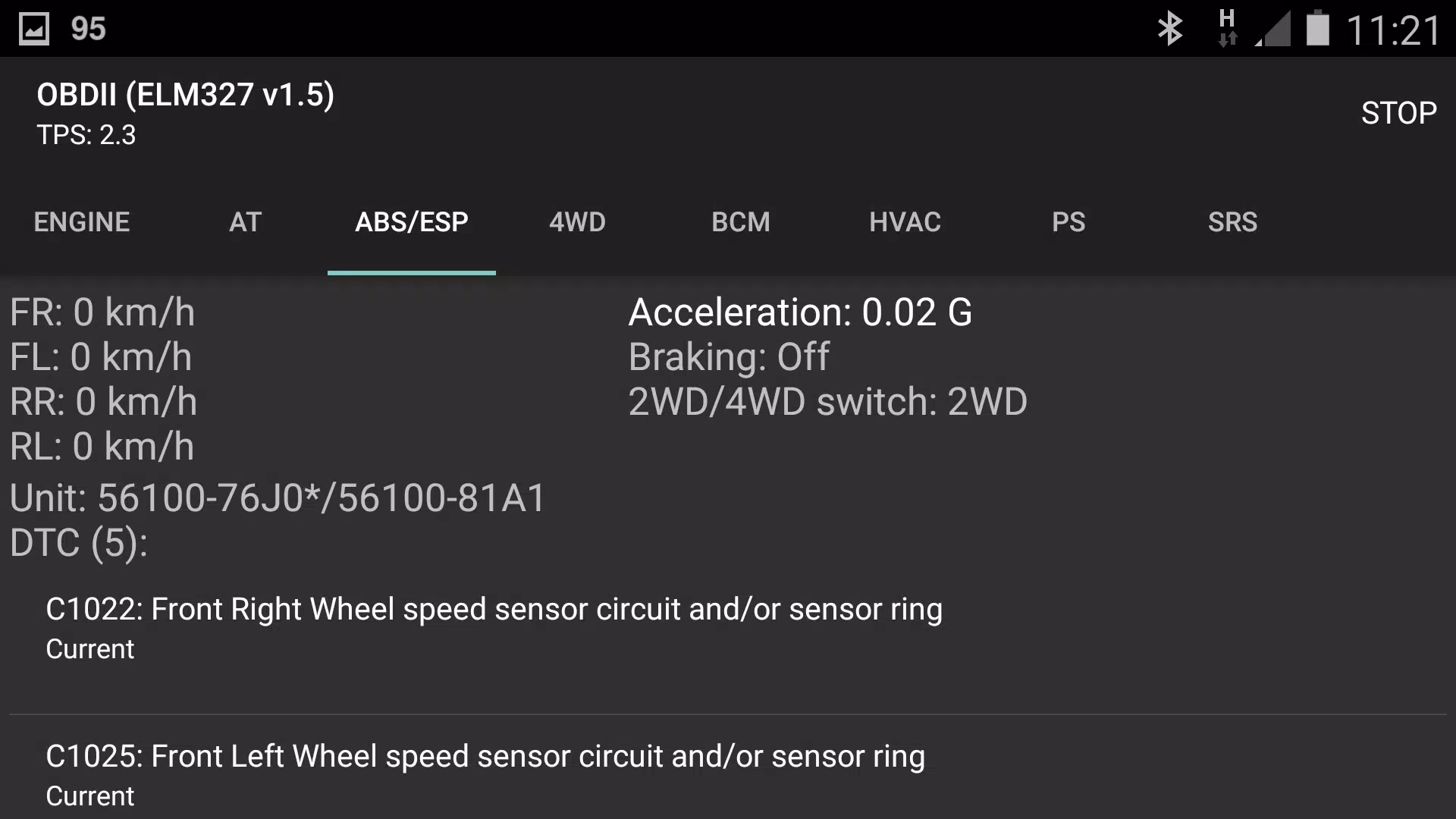

  • SZ Viewer: read DTC for Suzuki Screenshot 1

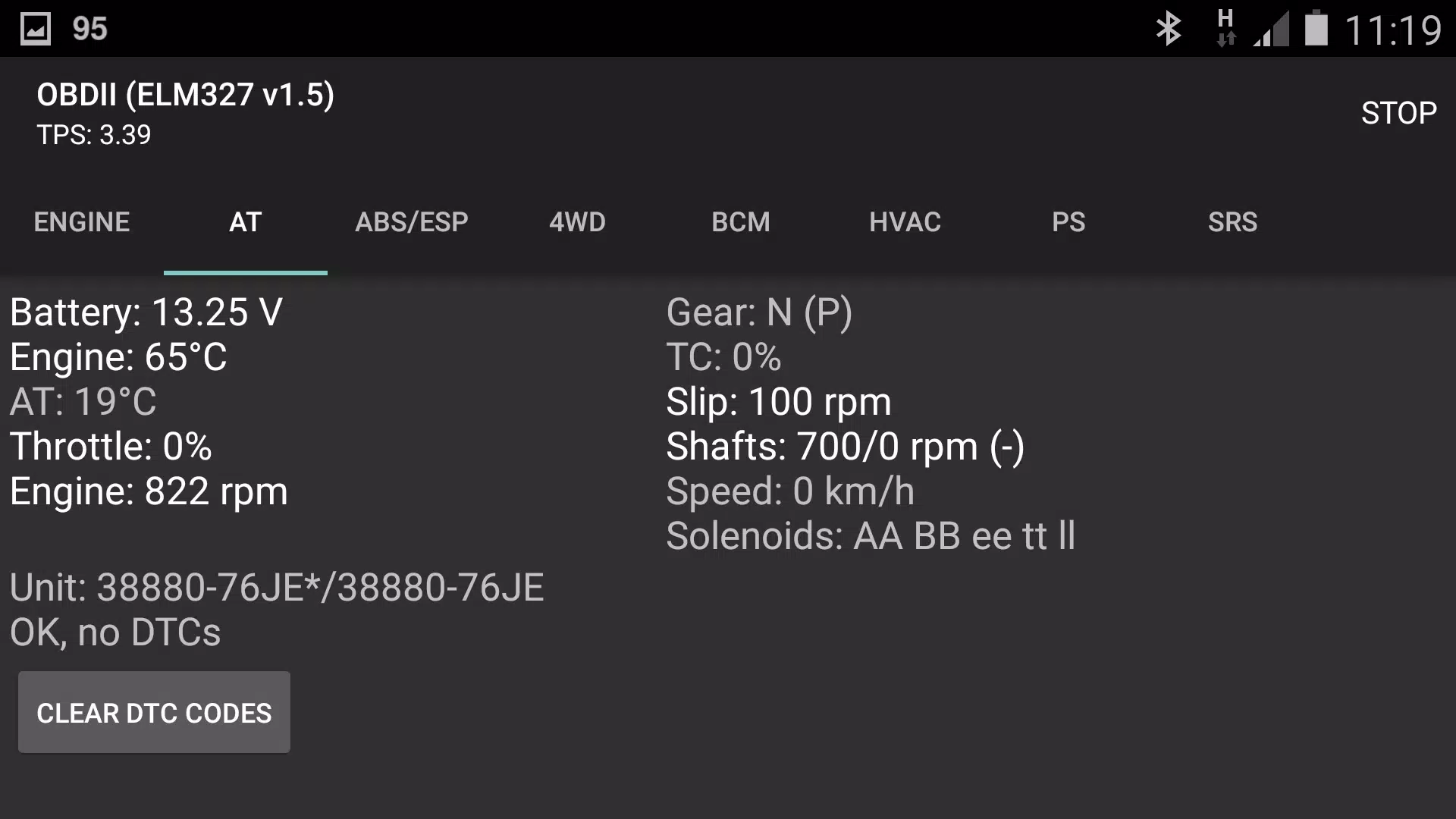

  • SZ Viewer: read DTC for Suzuki Screenshot 2

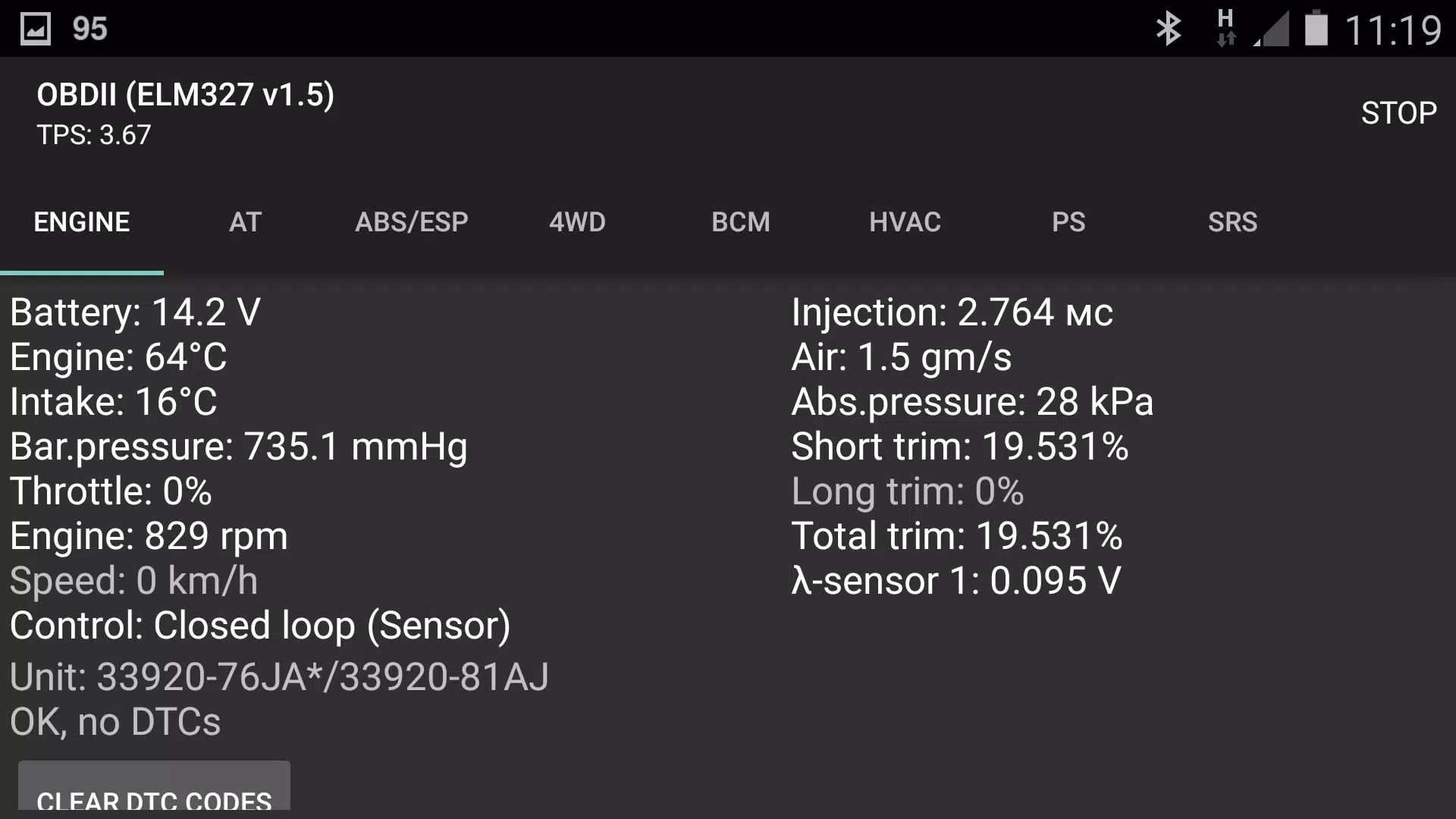

  • SZ Viewer: read DTC for Suzuki Screenshot 3
